Multi-Branch Merge (Inception-style)

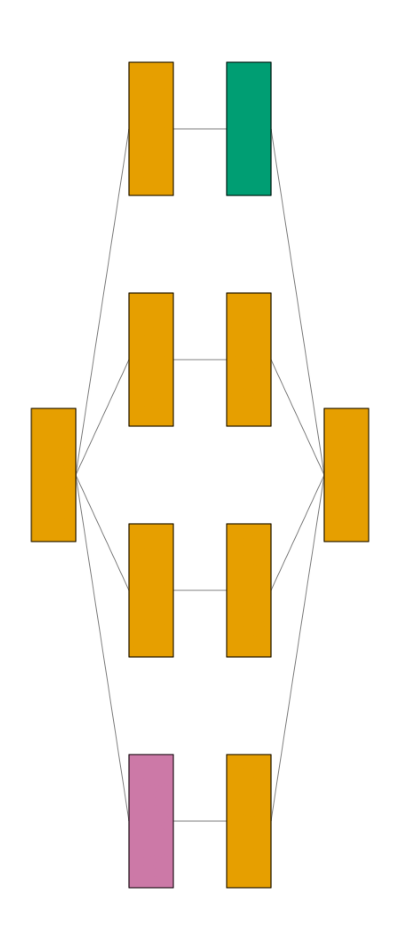

Visualization of an Inception-style block: four parallel branches (a plain Conv2d+BatchNorm2d, a 1x1-then-3x3 conv, a 1x1-then-5x5 conv, and a max-pool-then-1x1-conv) that all read the same input and merge into a shared projection layer.

Unlike a residual block’s single shortcut, this shows multiple layers stacked side by side within one column - one column per branch “depth,” with as many parallel boxes in a column as there are branches still active at that depth.

Conv2d is orange, BatchNorm2d is green, and MaxPool2d is reddish purple.

from collections import defaultdict

import matplotlib.pyplot as plt
import torch
import visualtorch
from torch import nn


class InceptionBlock(nn.Module):
    """A simplified Inception-style block with four parallel branches."""

    def __init__(self, in_channels: int, out_1x1: int, out_3x3: int, out_5x5: int, out_pool: int) -> None:
        super().__init__()
        self.branch1 = nn.Sequential(
            nn.Conv2d(in_channels, out_1x1, kernel_size=1),
            nn.BatchNorm2d(out_1x1),
        )
        self.branch2 = nn.Sequential(
            nn.Conv2d(in_channels, out_3x3, kernel_size=1),
            nn.Conv2d(out_3x3, out_3x3, kernel_size=3, padding=1),
        )
        self.branch3 = nn.Sequential(
            nn.Conv2d(in_channels, out_5x5, kernel_size=1),
            nn.Conv2d(out_5x5, out_5x5, kernel_size=5, padding=2),
        )
        self.branch4 = nn.Sequential(
            nn.MaxPool2d(kernel_size=3, stride=1, padding=1),
            nn.Conv2d(in_channels, out_pool, kernel_size=1),
        )
        total_channels = out_1x1 + out_3x3 + out_5x5 + out_pool
        self.project = nn.Conv2d(total_channels, total_channels, kernel_size=1)

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        """Run every branch on the same input, then concatenate and project."""
        b1 = self.branch1(x)
        b2 = self.branch2(x)
        b3 = self.branch3(x)
        b4 = self.branch4(x)
        merged = torch.cat([b1, b2, b3, b4], dim=1)
        return self.project(merged)


model = InceptionBlock(in_channels=16, out_1x1=8, out_3x3=8, out_5x5=8, out_pool=8)

input_shape = (1, 16, 16, 16)

color_map: dict = defaultdict(dict)
color_map[nn.Conv2d]["fill"] = "#E69F00"
color_map[nn.BatchNorm2d]["fill"] = "#009E73"
color_map[nn.MaxPool2d]["fill"] = "#CC79A7"

img = visualtorch.render(model, input_shape, style="graph", show_neurons=False, color_map=color_map, layer_spacing=60)

dpi = 150  # rendered at 2x this in the final doc build (savefig.dpi=300 in conf.py)
plt.figure(figsize=(img.width / dpi, img.height / dpi), dpi=dpi)
plt.imshow(img)
plt.axis("off")
plt.tight_layout()
plt.show()
