ResNet-18

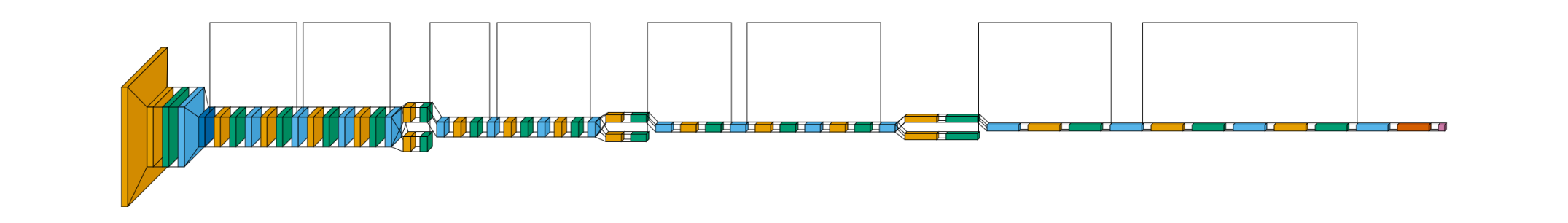

The same real, torchvision-provided resnet18 architecture as the graph style’s example - 8 residual blocks across 4 stages, with a projection shortcut where channels/spatial size change - rendered in flow style instead.

Conv2d is orange, BatchNorm2d is green, and ReLU is sky blue.

from collections import defaultdict

import matplotlib.pyplot as plt
import visualtorch
from torch import nn
from torchvision.models import resnet18

model = resnet18(weights=None, num_classes=10)

input_shape = (1, 3, 64, 64)

color_map: dict = defaultdict(dict)
color_map[nn.Conv2d]["fill"] = "#E69F00"
color_map[nn.BatchNorm2d]["fill"] = "#009E73"
color_map[nn.ReLU]["fill"] = "#56B4E9"

img = visualtorch.render(model, input_shape, style="flow", color_map=color_map, scale_xy=3, spacing=15)

dpi = 150  # rendered at 2x this in the final doc build (savefig.dpi=300 in conf.py)
plt.figure(figsize=(img.width / dpi, img.height / dpi), dpi=dpi)
plt.imshow(img)
plt.axis("off")
plt.tight_layout()
plt.show()
