Higher Resolution

lenet_view’s box size is mainly controlled by scale_xy (each stacked plane’s spatial width/height). Unlike flow_view, its scale_z already defaults to 1 rather than 0.1, so the per-slice depth is rarely the bottleneck here - scale_xy is the lever that actually makes each plane bigger and easier to read. scale_z is instead capped by max_channels (default 100): a layer with more channels than that gets its slice count clamped, not scaled further.

Conv2d is orange, BatchNorm2d is green, and ReLU is sky blue.

from collections import defaultdict

import matplotlib.pyplot as plt
import torch
import visualtorch
from torch import nn


class ResidualBlock(nn.Module):
    """A classic ResNet-style block with a plain identity shortcut."""

    def __init__(self, channels: int) -> None:
        super().__init__()
        self.conv1 = nn.Conv2d(channels, channels, kernel_size=3, padding=1)
        self.bn1 = nn.BatchNorm2d(channels)
        self.relu = nn.ReLU()
        self.conv2 = nn.Conv2d(channels, channels, kernel_size=3, padding=1)
        self.bn2 = nn.BatchNorm2d(channels)

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        """Define the forward pass, with a skip connection around conv1/bn1/relu/conv2/bn2."""
        identity = x
        out = self.relu(self.bn1(self.conv1(x)))
        out = self.bn2(self.conv2(out))
        out = out + identity
        return self.relu(out)


model = ResidualBlock(channels=8)

input_shape = (1, 8, 16, 16)

color_map: dict = defaultdict(dict)
color_map[nn.Conv2d]["fill"] = "#E69F00"
color_map[nn.BatchNorm2d]["fill"] = "#009E73"
color_map[nn.ReLU]["fill"] = "#56B4E9"

dpi = 150  # rendered at 2x this in the final doc build (savefig.dpi=300 in conf.py)

Default

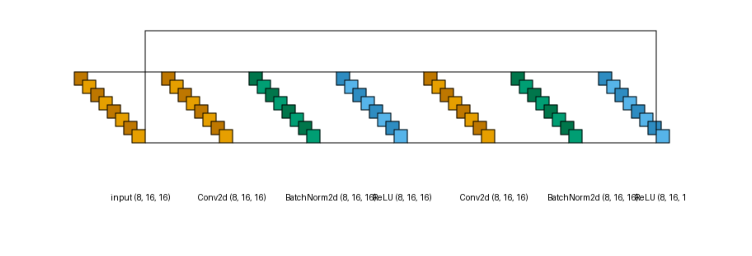

At the default scale_xy=1, each stacked plane is fairly small.

img_default = visualtorch.render(model, input_shape, style="lenet", color_map=color_map)

plt.figure(figsize=(img_default.width / dpi, img_default.height / dpi), dpi=dpi)
plt.imshow(img_default)
plt.axis("off")
plt.tight_layout()
plt.show()

Higher Resolution

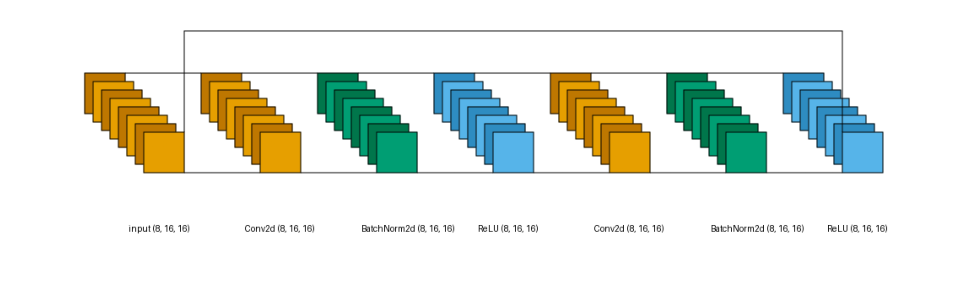

Raising scale_xy grows each plane’s spatial extent for a clearer, more substantial result.

img_hires = visualtorch.render(model, input_shape, style="lenet", color_map=color_map, scale_xy=3)

plt.figure(figsize=(img_hires.width / dpi, img_hires.height / dpi), dpi=dpi)
plt.imshow(img_hires)
plt.axis("off")
plt.tight_layout()
plt.show()
